Custom Test Fixture Product Development

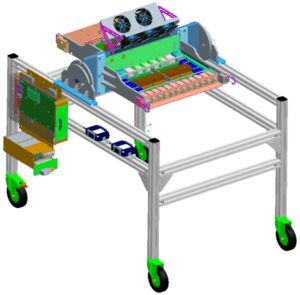

Product Example
  • Electrical Design & PCB Layout of Midplane, and 2 interface assemblies.
  • Mechanical Layout Top/Bottom Down Design.
  • Mechanical design of 3 assemblies with PCB validation.
  • Completely Documented.
  • DFM/DFA for reduced mfg cost.
  • Fully Managed Materials procurement, DVT (on-site), Assembly, and shipment to customer.
  • Geometric dimensioning and tolerancing to ASME Y14.5M-19941994
  • Sheet Metal design
  • Custom Designed Machine Parts
  • Custom Frames
  • Application Specific Approach
  • Fully Documented Assemblies
